Spray foam insulation delivers superior thermal performance by creating a continuous air barrier that effectively seals all gaps, cracks, and voids in building envelopes. This cutting-edge insulation technology outperforms traditional options by providing R-values of 3.7-6.5 per inch (depending on type), while simultaneously eliminating air infiltration that accounts for up to 40% of energy loss in buildings. The combination of high R-value and air-sealing properties creates a complete thermal envelope that maximizes comfort while minimizing energy costs.
This comprehensive guide explores the technical aspects, performance characteristics, and practical applications of modern spray foam insulation systems. You’ll learn about the different types available, their specific benefits, installation considerations, and the critical factors that determine which solution best fits your specific insulation needs.
Types of Spray Foam Insulation
Spray foam insulation comes in two primary forms, each with distinct properties that make them suitable for different applications.
Open-Cell vs Closed-Cell Comparison
| Property | Open-Cell Foam | Closed-Cell Foam |
|---|---|---|
| Density | 0.5-0.8 lb/ft³ | 1.7-2.2 lb/ft³ |
| R-Value per inch | 3.5-3.7 | 6.0-6.5 |
| Air Barrier | Yes (at 3+ inches) | Yes (at 1+ inch) |
| Vapor Barrier | No | Yes (at 2+ inches) |
| Water Resistance | Low | High |
| Sound Dampening | Superior | Good |
| Expansion | 100x initial volume | 30-50x initial volume |
| Cost per board foot | $0.35-$0.55 | $1.00-$1.50 |
| Best Applications | Interior walls, Sound control, Mild climates | Roofs, Basements, Extreme climates |
Open-cell foam consists of cells that are deliberately left open, creating a softer, more flexible material. Closed-cell foam has cells that are completely sealed, creating a rigid structure with higher density and strength.
Bonus Tip: For mixed-climate regions, consider a hybrid approach using closed-cell foam in moisture-prone areas like basements and crawl spaces, with more economical open-cell foam in dry interior spaces.
Technical Specifications and Performance Metrics
| Performance Metric | Standard Fiberglass | Cellulose | Open-Cell Spray Foam | Closed-Cell Spray Foam |
|---|---|---|---|---|
| Thermal Resistance (R-value/inch) | 2.2-3.8 | 3.1-3.8 | 3.5-3.7 | 6.0-6.5 |
| Air Permeance (L/s/m²) | High | Medium | Low (0.02) | Very Low (0.01) |
| Water Vapor Permeance (perms) | High | Medium | High (10+) | Low (0.8-1.5) |
| Sound Transmission Class (STC) | 39 | 44 | 37-41 | 35-39 |
| Global Warming Potential (GWP) | Low | Low | Low | Medium |
| Lifespan (years) | 20-30 | 20-30 | 80+ | 80+ |
Installation Process and Requirements
Spray foam insulation requires specialized equipment and training for proper application. The process follows several key steps that ensure optimal performance and safety.
Application Methodology
- Site Preparation: Remove existing insulation, clean surfaces, and protect areas not being sprayed.
- Surface Conditioning: Ensure substrate is dry and within temperature specifications (typically 40-120°F).
- Material Preparation: Heat and pressurize the two chemical components in the spray equipment.
- Application: Apply in layers (typically 1-3 inches per pass) to achieve desired thickness.
- Curing: Allow foam to fully cure (typically 24-48 hours) before covering.
- Trimming: Remove excess foam that expands beyond intended boundaries.

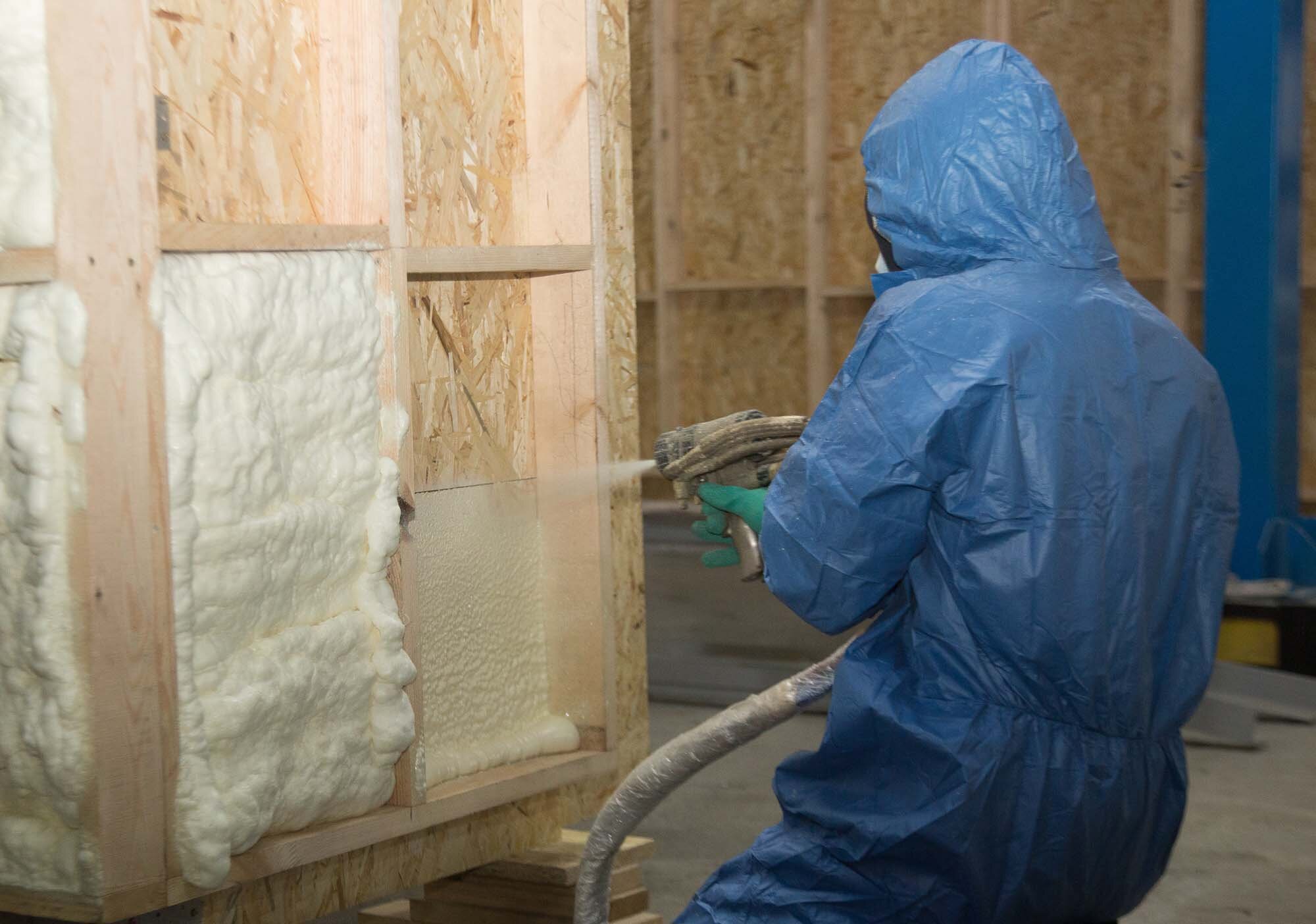

[Image: Professional applicator spraying foam insulation in wall cavity with proper safety equipment]
According to market data from the Spray Polyurethane Foam Alliance, installations have increased by 29% in the past five years, with the average homeowner reporting energy savings of 30-50% after a complete spray foam retrofit.
Bonus Tip: For DIY applications, two-component foam kits are available for small projects, but professional installation is strongly recommended for whole-home applications due to the precise mixing ratios and temperature control required for optimal performance.
Benefits in Different Building Applications
Spray foam provides specific advantages in various areas of construction and renovation:
Performance in Key Building Areas
| Building Area | Benefits of Spray Foam | Special Considerations |
|---|---|---|
| Attics | Reduces heat transfer by up to 97%; Creates air-sealed thermal envelope | Ventilation strategy must be revised if moving from vented to unvented attic |
| Walls | Eliminates convective looping; Adds structural strength | Existing wall applications require access points for injection |
| Basements | Controls moisture; Prevents condensation on cold surfaces | Proper vapor control is essential in below-grade applications |
| Crawl Spaces | Creates cleaner, drier environment; Reduces pest infiltration | Assess ground moisture conditions before encapsulation |
| Rim Joists | Seals critical junction points; Prevents major air leakage | Must accommodate wood movement and settling |
| Roofs | Creates continuous insulation layer; Prevents ice dams | Requires specific formulations for exterior applications |
Things to Consider Before Making a Decision
Before investing in spray foam insulation, evaluate these critical factors:
- Budget Considerations: Initial costs are 2-3 times higher than traditional insulation, but energy savings typically produce ROI within 3-7 years.
- Building Code Requirements: Many jurisdictions require specific fire barriers over foam insulation in habitable spaces.
- Existing Moisture Issues: Address any water infiltration problems before encapsulating spaces with spray foam.
- Ventilation Strategy: Tightly sealed buildings require mechanical ventilation to maintain indoor air quality.
- Contractor Qualifications: Improper installation can lead to off-gassing, shrinkage, or incomplete curing.
- Environmental Concerns: Some formulations contain flame retardants and blowing agents with environmental impacts.
Health and Safety Aspects
Proper installation protocols and curing times are essential for safety. The chemicals used in spray foam are considered non-toxic once fully cured (24-72 hours), but installation creates exposure risks:
| Safety Consideration | During Application | After Curing |
|---|---|---|
| Respiratory Effects | Potential irritation and sensitization | None with proper curing |
| Skin Contact | Chemical burns possible | Non-irritating |
| Off-gassing | VOCs present during curing | Minimal to none after full cure |
| Fire Resistance | Requires thermal/ignition barrier | Class I fire rating possible |
| Occupancy Timing | Building should be vacant during installation | Safe for occupancy after ventilation period |
Spray Foam Insulation FAQ
How long does spray foam insulation last?
Properly installed spray foam insulation maintains its performance characteristics for the lifetime of the building, typically 80+ years. Unlike fiber insulations that can settle or compress over time, cured spray foam remains dimensionally stable and retains its original R-value indefinitely.
Can spray foam insulation be removed if needed?
Yes, but removal is labor-intensive and costly. The foam must be mechanically cut and scraped from surfaces. This difficult removal process is one reason why proper planning before installation is crucial. Removal is typically only necessary during major renovations or remediation of improper installations.
Is spray foam insulation environmentally friendly?
The environmental impact varies by formulation. Most modern formulations have eliminated ozone-depleting substances, but some closed-cell foams still use hydrofluorocarbon blowing agents with global warming potential. Water-blown and bio-based formulations offer improved environmental profiles. The energy savings over the product lifecycle generally offset the initial environmental impact.
Can spray foam be applied over existing insulation?
In most cases, existing insulation should be removed before applying spray foam to ensure proper adhesion and eliminate potential moisture traps. Exceptions exist for certain applications where spray foam can cap existing insulation, but these require professional assessment to avoid creating double vapor barriers or moisture problems.
What temperature limitations apply to spray foam insulation?
Most spray foam insulations perform effectively across temperature ranges from -40°F to 200°F. However, application temperature is critical—substrate temperatures generally must be between 40°F and 120°F during installation, with ambient humidity below 80% for proper chemical reaction and curing.
Make the Right Decision
Spray foam insulation offers superior thermal performance and air-sealing capabilities that significantly outperform traditional insulation materials. The higher initial investment delivers substantial energy savings, improved comfort, and enhanced structural integrity. The choice between open-cell and closed-cell formulations should be based on your specific application, climate conditions, moisture control needs, and budget constraints.
Consider consulting with certified spray foam contractors who can provide site-specific recommendations and proper installation. Remember that the long-term performance of spray foam depends heavily on correct installation techniques and appropriate material selection for your specific building conditions. With proper planning and professional application, spray foam insulation delivers unmatched comfort and efficiency for decades to come.
