Mineral wool is a preferred insulation material due to its exceptional fire resistance properties. As concerns around fire safety in construction rise, mineral wool stands out for its ability to withstand high temperatures and help prevent the spread of flames. This article explores why mineral wool is the go-to insulation for fire resistance, breaking down its key features, applications, and considerations.
Mineral wool, often known as rock wool or slag wool, is made by heating natural minerals, such as basalt rock or recycled slag, to high temperatures and then spinning them into fibers. These fibers create an insulating material that offers both thermal and fire-resistant properties, making it an ideal choice for fire safety in building projects.
Key Fire-Resistant Properties of Mineral Wool
Mineral wool’s fire resistance stems from its natural composition and structure. Unlike many other insulation materials, mineral wool is non-combustible, which means it will not catch fire or contribute to the spread of flames. When subjected to heat, mineral wool maintains its structural integrity, making it an effective barrier against fire.
Fire Resistance Rating
Mineral wool can withstand temperatures up to 1,000°C (1,832°F) without melting or combusting. This high temperature threshold makes it suitable for a wide range of applications, including industrial, commercial, and residential buildings.
Comparison of Insulation Materials for Fire Resistance
| Insulation Material | Fire Resistance Rating | Temperature Threshold | Combustibility | Additional Properties |
| Mineral Wool (Rock Wool) | Non-combustible | Up to 1,000°C (1,832°F) | Non-combustible | Excellent thermal insulation |
| Fiberglass | Combustible (depending on product) | Up to 500°C (932°F) | Combustible | Good thermal insulation |
| Expanded Polystyrene (EPS) | Combustible | Up to 80°C (176°F) | Combustible | Lightweight, poor fire resistance |
| Cellulose | Combustible | Up to 180°C (356°F) | Combustible | Eco-friendly, poor fire resistance |
| Spray Foam | Combustible (depending on product) | Up to 250°C (482°F) | Combustible | High R-value, variable fire resistance |
The table above compares mineral wool with other common insulation materials in terms of fire resistance. Mineral wool’s non-combustibility and high temperature tolerance make it a superior choice for environments where fire safety is a primary concern.
Applications of Mineral Wool in Fire Protection
Mineral wool is often used in applications where fire resistance is critical. Some common uses include:
Commercial and Industrial Buildings
In commercial and industrial settings, mineral wool insulation is used for insulating walls, ceilings, and floors to provide fire barriers. It helps slow down the spread of fire, providing valuable time for evacuation and reducing property damage.
Residential Buildings

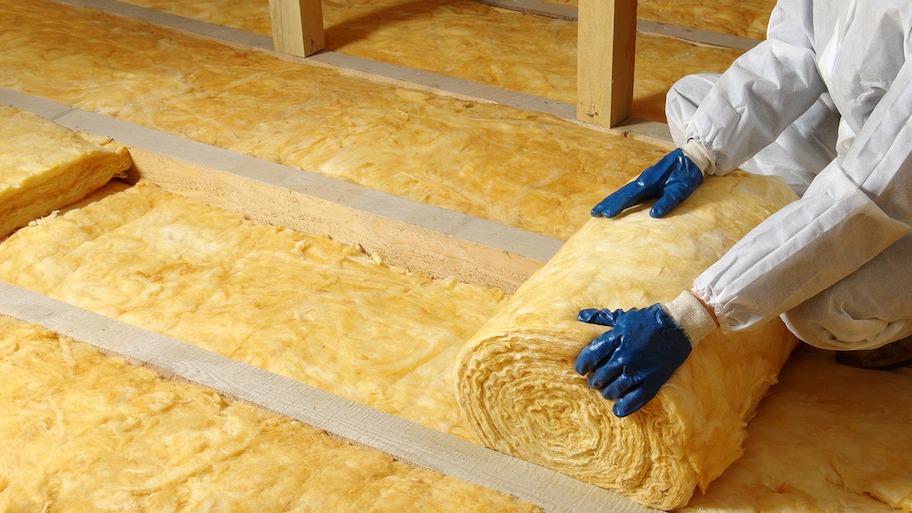

In residential buildings, mineral wool is often used in fire-rated walls, attics, and between floors to enhance fire protection. It is particularly beneficial in high-rise apartments and houses where fire safety standards are stringent.
HVAC Systems
Mineral wool is also used in the insulation of HVAC systems. It helps to prevent fire from spreading through air ducts and ventilation systems, ensuring that the fire does not travel through the building’s air supply.
Bonus Tip: Integration with Other Fire Safety Measures
Mineral wool can be used alongside other fire safety materials, such as fire-resistant doors and sprinkler systems, to create a comprehensive fire protection strategy for buildings.
Things to Consider Before Making a Decision
When choosing mineral wool for fire resistance, there are several factors to consider:
Cost vs. Performance
While mineral wool may be more expensive than other insulation options, its superior fire resistance and thermal properties often justify the additional cost, especially in high-risk areas.
Installation
Mineral wool is relatively easy to install, but it is important to ensure that it is fitted properly. Gaps or voids in insulation can reduce its effectiveness in fire resistance.
Environmental Impact
Mineral wool is made from natural and recycled materials, making it an environmentally friendly choice compared to synthetic materials like foam. It is also fully recyclable.
Fire Safety Codes and Regulations
Check local fire safety codes and regulations to ensure that mineral wool meets the required standards for your specific project. Many regions have strict fire resistance requirements for certain types of buildings.
Common Questions
How does mineral wool compare to fiberglass in terms of fire resistance?
Mineral wool is significantly more fire-resistant than fiberglass. While fiberglass can withstand temperatures of up to 500°C (932°F), mineral wool can resist temperatures up to 1,000°C (1,832°F) without catching fire, making it the superior choice for fire protection.
Can mineral wool prevent fires completely?
While mineral wool is highly fire-resistant, it is not completely fireproof. It can slow the spread of fire, but it is important to use it as part of an overall fire safety strategy that includes other measures such as fireproof doors and sprinkler systems.
Is mineral wool suitable for residential use?
Yes, mineral wool is commonly used in residential buildings, particularly in areas that require fire-rated insulation, such as between floors and in attic spaces. It offers excellent fire protection while also providing thermal insulation.
How long does mineral wool retain its fire-resistant properties?
Mineral wool retains its fire-resistant properties for the life of the building when installed properly. It is designed to withstand high temperatures without degrading, making it a long-lasting fire protection solution.
What is the R-value of mineral wool insulation?
The R-value of mineral wool insulation typically ranges from 3.0 to 4.0 per inch of thickness. This value measures the material’s thermal resistance, helping to improve energy efficiency while providing fire protection.
FAQ
What is the primary benefit of mineral wool?
The primary benefit of mineral wool is its superior fire resistance, making it an essential material for enhancing fire safety in buildings.
Is mineral wool more expensive than other insulation materials?
Yes, mineral wool tends to be more expensive than alternatives like fiberglass or foam. However, its enhanced fire protection and thermal efficiency can make it a worthwhile investment.
Can mineral wool be used outdoors?
Yes, mineral wool can be used outdoors in applications such as external wall cladding or as part of a fire-resistant insulation system for buildings in high-risk areas.
How is mineral wool installed?

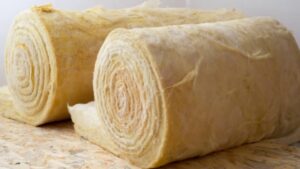

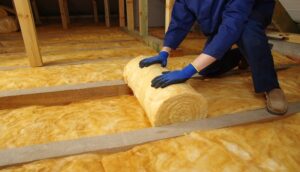

Mineral wool is typically installed in batts, rolls, or loose-fill forms, depending on the application. It should be installed to fill cavities completely, with careful attention to seams and joints to ensure maximum fire resistance.
Does mineral wool require any special maintenance?
Mineral wool does not require special maintenance. However, it is important to inspect the material during building inspections to ensure it remains intact and free of damage.
Make the Right Decision
Choosing the right insulation material is crucial, especially when fire safety is a priority. Mineral wool offers superior fire resistance, making it an excellent choice for buildings in fire-prone areas. By considering factors such as cost, installation, and fire safety codes, you can ensure that your building is equipped with the best possible fire protection.
