In todayโs complex industrial environments, precise signal transmission and control are essential for optimizing performance and ensuring safety. One of the foundational technologies that enable effective communication between field devices and control systems is the Analog Input/Output (I/O) module. Particularly in demanding sectors like the turbine industry, current source analog I/O modules play a pivotal role.
What Is Analog I/O?
Analog I/O modules serve as the interface between real-world physical signals and digital control systems. They convert analog signalsโsuch as temperature, pressure, and flowโinto digital data (input), and vice versa (output) to operate actuators like valves and motors.
Unlike digital I/O, which handles binary signals (on/off), analog I/O deals with continuously varying signals, offering more granular control and monitoring. In industrial settings, these modules often operate using standard signal ranges like 4โ20 mA or 0โ10 V.
Why Current Source Configuration Matters

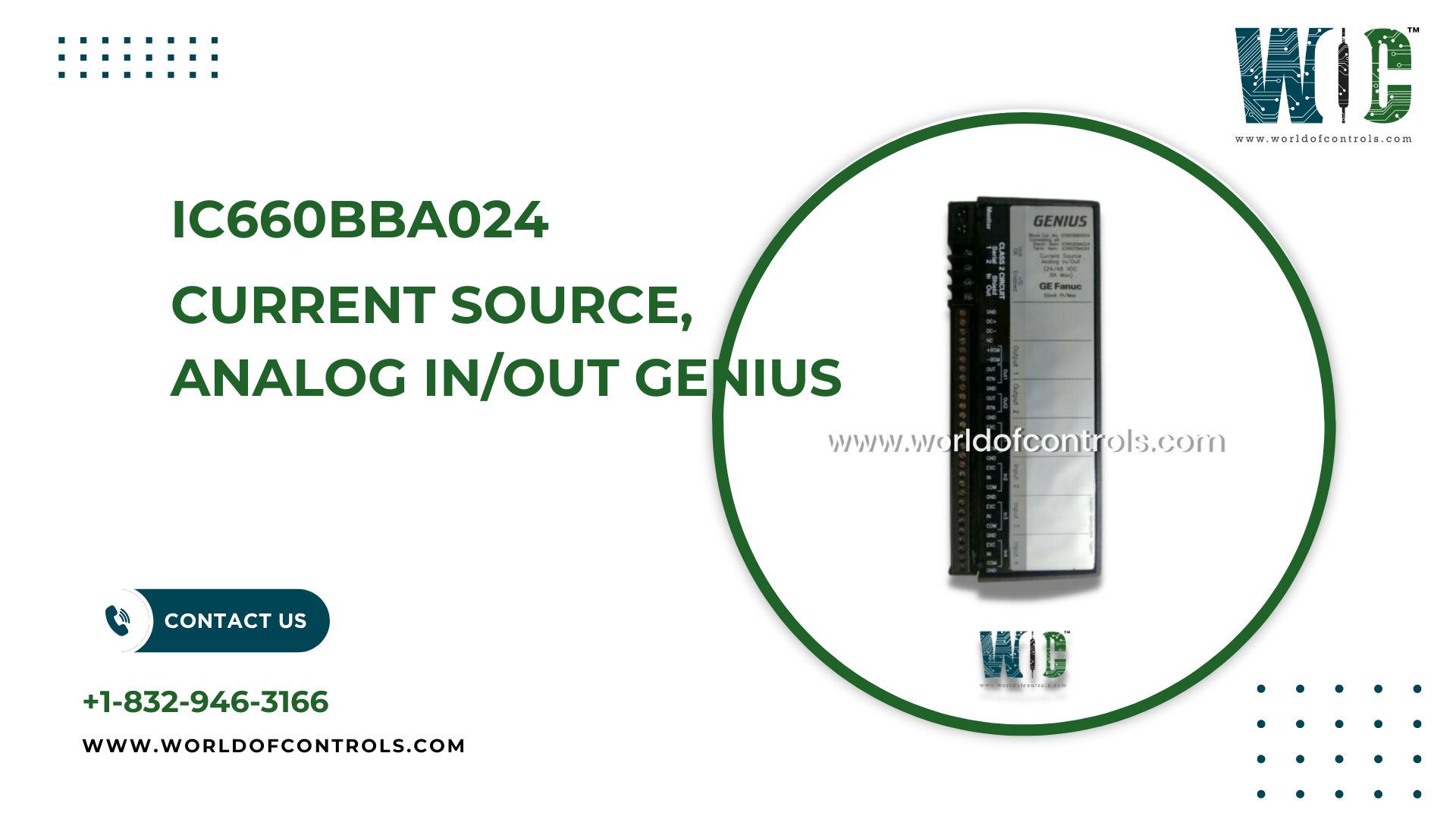

In a current source configuration, the analog I/O module provides a regulated currentโtypically 4โ20 mAโdirectly to the field device. This method is widely used in industrial automation due to several advantages:
- Signal Integrity Over Distance: Current signals are far less susceptible to voltage drops, making them ideal for long cable runs.
- Noise Immunity: Industrial environments, especially turbine facilities, are electrically noisy. Current loops offer high resistance to electromagnetic interference (EMI).
- Simplified Power Design: A current source module can power sensors or actuators without the need for separate loop power supplies.
These features make current source analog I/O a robust and efficient choice for reliable signal transmission in mission-critical applications.
Application in the Turbine Industry
Turbine systemsโwhether for power generation, oil and gas, or aerospaceโdemand high-precision data and responsive control. Monitoring and controlling processes such as combustion, cooling, lubrication, and airflow requires accurate and stable analog signals.
A current source analog I/O module excels in this environment by:
- Providing output signals to control devices like actuators or modulating valves that regulate fuel or air.
- Maintaining stable operation in harsh conditions, including high temperatures and EMI-heavy turbine halls.
- Offering built-in diagnostics to detect open loops, short circuits, or other faultsโcrucial for minimizing downtime and maintenance efforts.
These capabilities support continuous, safe, and optimized turbine operation, which is essential for both performance and compliance in regulated industries.
Distributed I/O in Industrial Control Systems
Many current source analog I/O modules are designed to operate in distributed control architectures, where I/O blocks are installed close to sensors and actuators in the field. This reduces wiring complexity, improves scalability, and allows for more modular system design.
In a turbine facility, this means that control systems can be localized near each turbine unit, enabling faster response times and easier maintenance access. With support for industrial communication protocols, these modules integrate seamlessly into modern SCADA and PLC networks.
Benefits Summary
Hereโs why current source analog I/O modules are preferred in turbine and other heavy industrial applications:
- Reliability: Stable 4โ20 mA signals are less prone to degradation and can operate over long distances.
- Robustness: Better performance in high-noise environments due to inherent noise immunity.
- Simplicity: Reduced need for external power supplies or signal conditioners.
- Safety and Diagnostics: Built-in features help detect failures early and maintain safe operations.
Conclusion
In the highly dynamic and safety-critical turbine industry, current source analog I/O technology provides the precision, durability, and intelligence needed for effective monitoring and control. Its ability to withstand harsh conditions, maintain signal integrity, and seamlessly integrate into distributed systems makes it an invaluable component of industrial automation. As turbine technology continues to evolve, so too will the role of smart, efficient I/O systems that form the backbone of reliable industrial performance.
